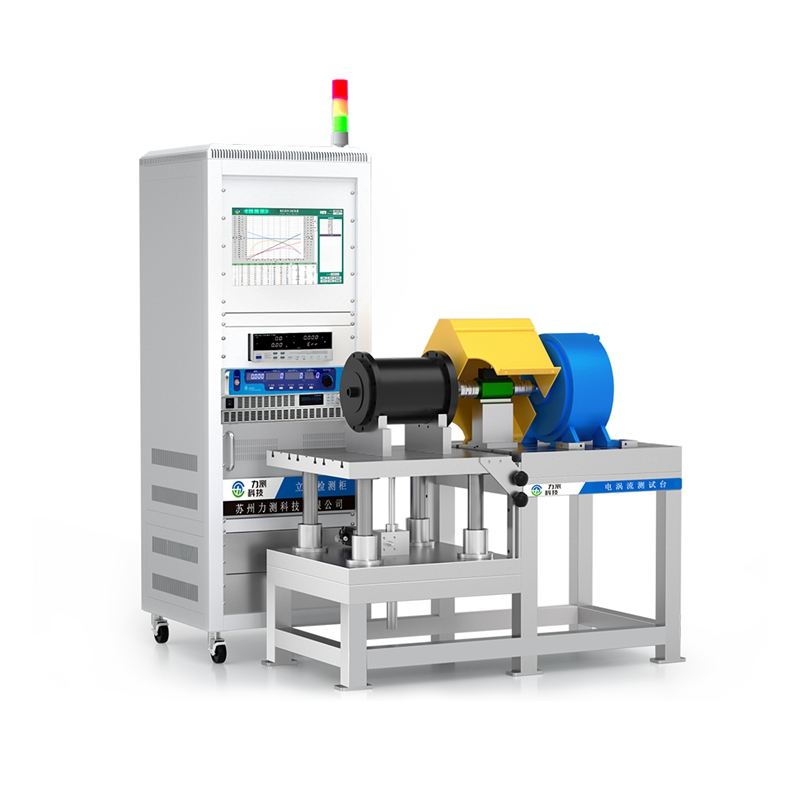

Electromagnetic Vortex Torque Measuring Machine

Product Features:

The load can be changed simply by adjusting the excitation current; it is easy to use and offers excellent control performance.

Suitable for load testing, temperature rise testing, and simulated life testing of high-speed, high-power motors.Examples include: power tools, series-wound motors, and asynchronous motors.

Eddy current brakes are widely used in dynamometer loading. They are used to measure the torque, speed, power, efficiency, current, and voltage of motors, internal combustion engines, gearboxes, and transmission machinery. The eddy current brake acts as a simulated loader and interfaces with a computer to achieve automatic control.

Product Overview:

The eddy current dynamometer, based on the full-current braking principle, enables precise application and dynamic adjustment of the load on the tested motor. Collaborating with electrical parameter measuring instruments and other equipment, it accurately collects key performance parameters of the motor under all operating conditions in real time. Suitable for high-speed, high-power, and demanding testing scenarios, it meets the professional needs of complex operating conditions. It features flexible and intelligent load adjustment, accurate and reliable data acquisition, stable and efficient operation, and safe and convenient human-machine interaction. Combined with a wide measurement range and strong data analysis capabilities, it has become a core piece of equipment for motor performance evaluation. It is widely used in aerospace, defense, high-end manufacturing, and research institutions, integrating into the entire motor lifecycle and supporting technological innovation and quality upgrades.

Application Scope:

The eddy current dynamometer is mainly used in high-speed applications, such as power tools, garden tools, and drones.

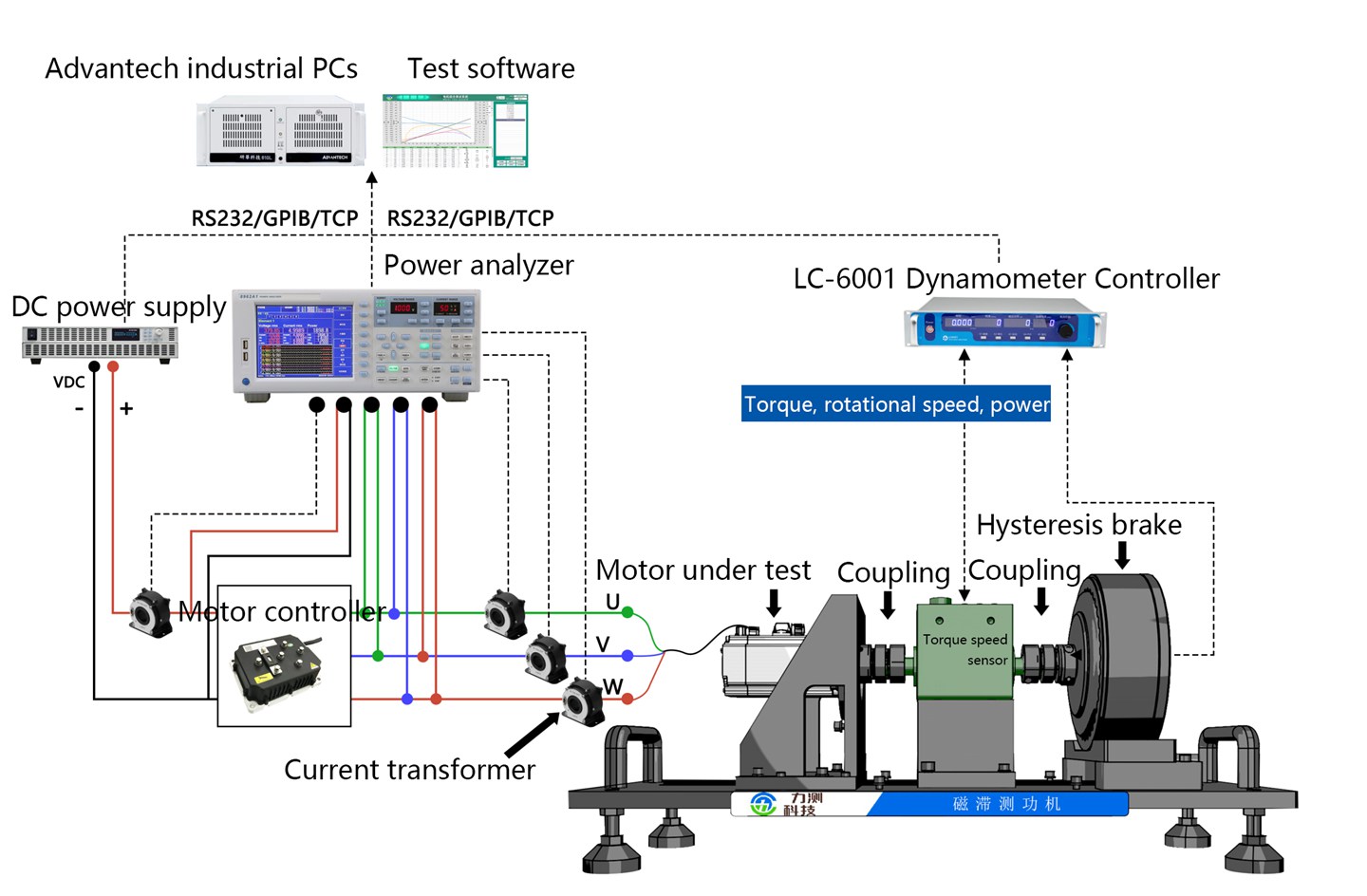

Principle Diagram:
