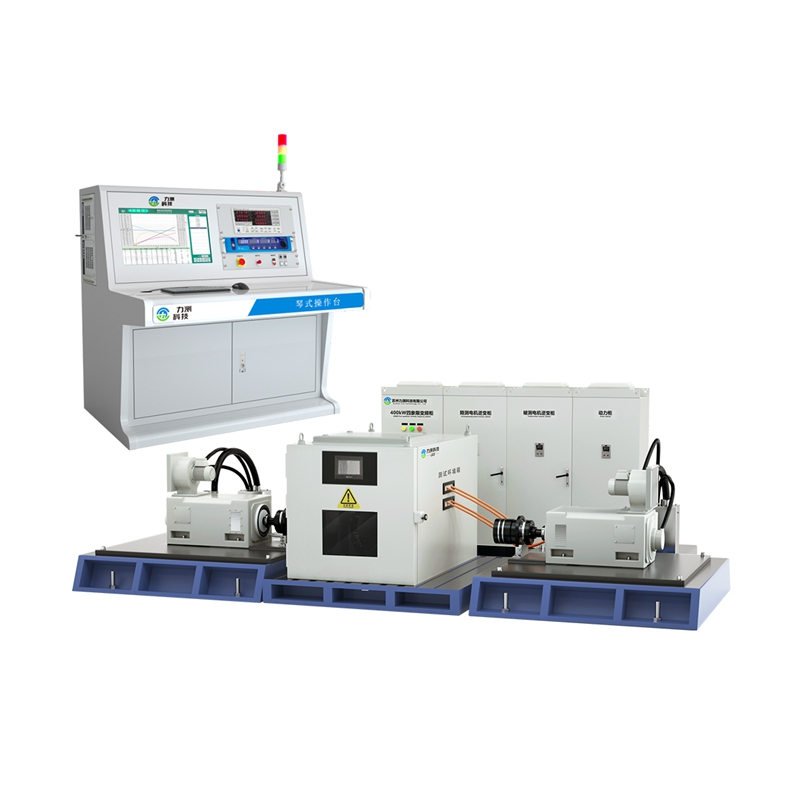

New Energy Vehicle Motor Testing Bench

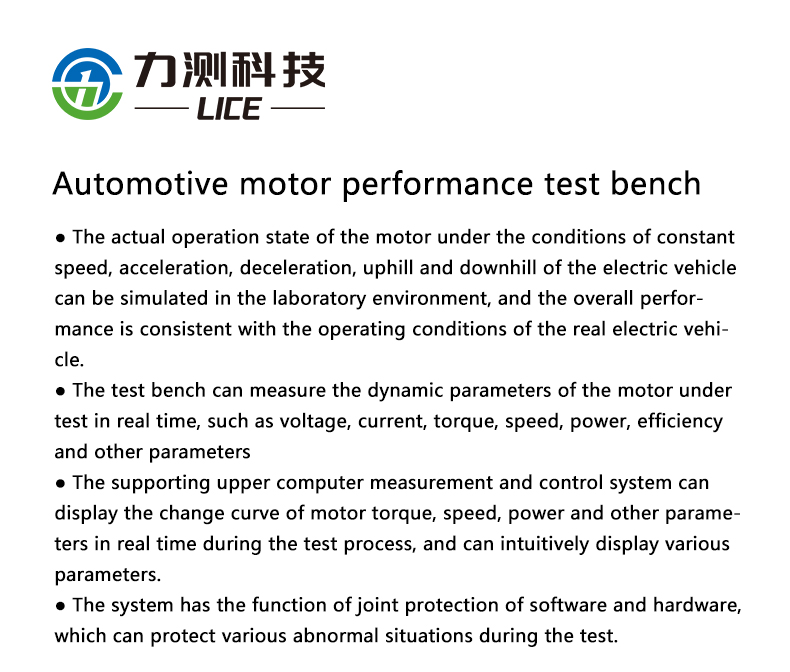

Automotive motor performance testing bench

The test bench can simulate the actual operating conditions of an electric vehicle motor in a laboratory environment, including constant speed, acceleration, deceleration, uphill driving, and downhill driving. The overall performance closely matches the operating conditions of a real electric vehicle.

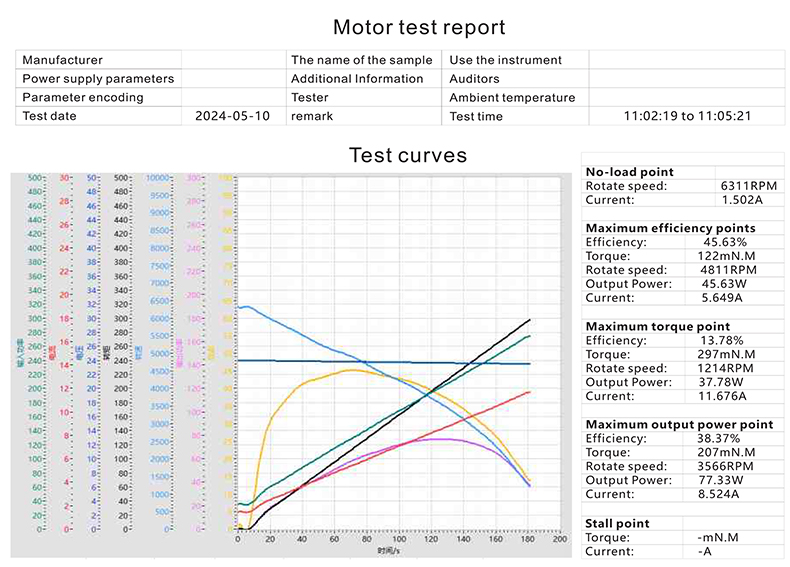

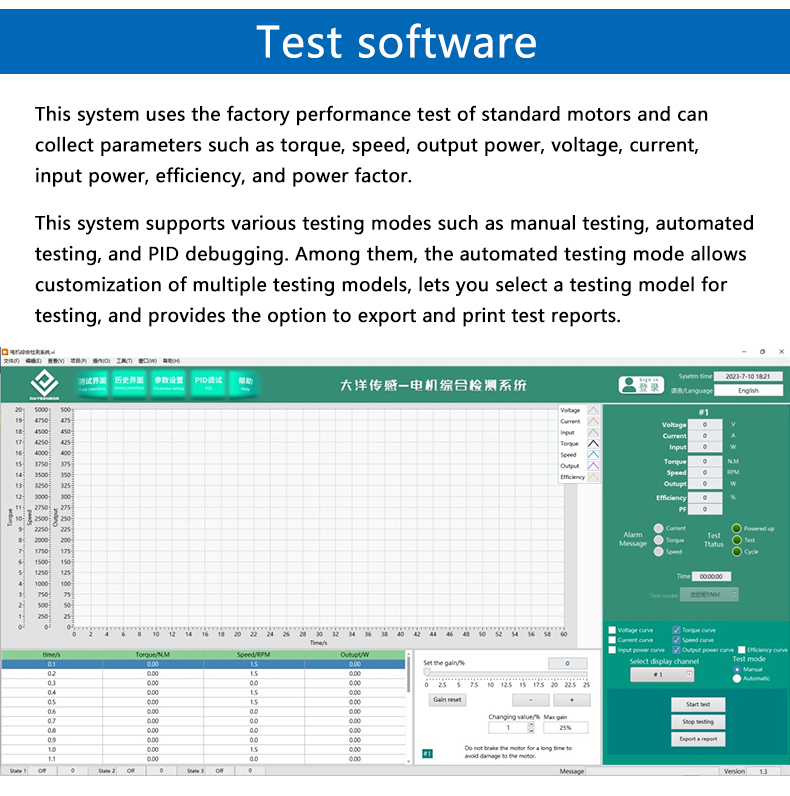

The test bench can measure various dynamic parameters of the motor under test in real time, such as voltage, current, torque, speed, power, and efficiency. The accompanying host computer control system can display the real-time curves of torque, speed, and power changes during the test, providing a clear and intuitive display of these parameters.

The system features combined hardware and software protection functions to ensure safety in case of various abnormal situations during testing.
